Ascot Trinnov Home Cinema Install

A Reference 12-Seat Cinema with Trinnov Audio

This private home cinema installation in Ascot, Berkshire is among the most technically ambitious rooms we have designed and installed. At 6.4m wide, 8.4m long with a 2.8m ceiling height, the room is large enough to accommodate a genuinely theatrical experience — and the specification matches the space. A 4.5m acoustically transparent screen, Sony VPL-VW5000ES 4K laser projector, Trinnov Audio processing and an Artcoustic 15.3.8 speaker configuration combine to deliver performance that few residential cinema rooms in the UK can match.

The Projector Screen and Sony 4K Laser Projector

The 4.5m acoustically transparent screen sits flush against the front wall in a custom-built enclosure. Projection is by the Sony VPL-VW5000ES, Sony’s flagship residential projector at the time of installation, with native 4K (4096 × 2160) SXRD panels and a Z-Phosphor laser light source rated at 5,000 lumens. That brightness headroom matters on a screen of this width, where image size and an acoustically transparent surface both reduce the light reaching the audience. The laser source is rated for up to 20,000 hours of operation, and the projector handles both HDR10 and HLG content. The acoustically transparent fabric allows the three front-stage Artcoustic speakers to sit directly behind the screen, maintaining perfect spatial alignment between image and sound.

A room of this scale only performs when every element is designed as one system. Screen size, seating positions, speaker locations and acoustic treatment were planned together around the room’s 6.4m × 8.4m footprint rather than specified as separate packages. As on every cinema we install, calibration in the finished room is part of the handover, not an optional extra.

Trinnov Audio Processing — Why This Room Demanded It

A 15.3.8 speaker configuration — 26 speaker positions in total — is beyond the capability of any conventional AV receiver. The Trinnov Altitude processor was the only meaningful choice — processing Dolby Atmos and DTS:X across the full channel count with Trinnov’s own Optimizer calibration correcting for the acoustic behaviour of the room. Every seat delivers the same audio experience regardless of position.

The Optimizer uses Trinnov’s 3D microphone: four capsules arranged in a tetrahedral configuration that capture sound in three dimensions simultaneously. It maps the position of every loudspeaker in the room to within a centimetre and a degree of arc, so the processor knows not just how loud each speaker is but precisely where it is, and applies time and level corrections that are coherent in three dimensions. With 26 speaker positions and 12 seats, that precision is what keeps the soundfield consistent from the front row to the back.

Artcoustic Performance Speakers

The 15.3.8 array uses Artcoustic Performance speakers. Artcoustic’s high sensitivity rating makes reference-level dynamics achievable with comparatively modest amplifier power, and its array speakers meet and exceed the Dolby Atmos output requirement of 105–115dB at the reference listening position. Eight height positions carry the overhead layer, three subwoofer channels handle the low frequencies, and the three front-stage speakers behind the screen anchor dialogue and effects to the image. The 15.3.8 Artcoustic layout with Trinnov room correction produces an enveloping, three-dimensional soundstage that transforms how film soundtracks are experienced.

Cineak Fortuny Seating for 12

We specified Cineak Fortuny seats throughout — double sofas on the front row, individual seats across the rear. The Fortuny range combines deep cushioning, adjustable lumbar support and clean contemporary aesthetics. Backlit Onyx tables at the end of each row illuminate the step between rows and provide a surface for items too large for the in-arm cup holders. The room seats 12 in considerable comfort for the duration of even the longest film.

Acoustic Fabric Wrapping

Managing the acoustics of a room with 26 speaker positions requires a full acoustic fabric wrap across all walls and ceiling. This conceals every speaker from sight — no visible technology, no visible acoustic panels — and prevents reflections from hard surfaces that would muddy the audio. The “pillow” effect, where fabric is applied over acoustic material with a slight relief, adds depth to the room surfaces. Every seam line and fixing point was treated as part of the design.

Our fabric walls follow the same construction on every cinema we build: stud work across the treated walls, acoustic fleece in the voids alongside the concealed speakers, our engineered track system fixed to the studwork, and a mineral wool or fibreglass acoustic core behind the stretched fabric. In front of the speakers and behind the screen we specify an open-weave acoustic cloth, chosen so it doesn’t dull high frequencies on their way into the room.

The Result

A room that performs at a level that rewards the most demanding content — from the subtlest atmospheric detail in a dialogue-heavy drama to the full physical impact of a large-scale action sequence. The combination of Trinnov processing, Artcoustic speakers, Sony laser projection and a 4.5m screen in a properly designed acoustic environment is exceptional. It is the kind of installation that fundamentally changes what clients expect from a home cinema room.

Frequently Asked Questions — Ascot Reference Cinema

Why does a 15.3.8 speaker system need Trinnov processing?
A 15.3.8 configuration — 26 speaker positions in total — exceeds what any conventional AV receiver can process. The Trinnov Altitude handles Dolby Atmos and DTS:X across the full channel count, with Trinnov’s Optimizer calibration correcting for the specific acoustic behaviour of the room.

What is the “pillow effect” fabric wall treatment?
The pillow effect applies acoustic fabric over acoustic material with a slight relief, adding visual depth to the room surfaces while concealing every one of the room’s 26 speaker positions completely — no visible grilles or panels anywhere in the finished room.

How large is this Ascot cinema room?
The room measures 6.4m wide by 8.4m long with a 2.8m ceiling height — large enough for a 4.5m acoustically transparent screen and seating for 12 across two rows of Cineak Fortuny seats.

Which projector drives the 4.5m screen?
A Sony VPL-VW5000ES, Sony’s flagship residential projector at the time of installation, with native 4K SXRD panels and a 5,000-lumen Z-Phosphor laser light source.

Trinnov Home Cinema → · Artcoustic Speakers → · Home Cinema Installation → · Fabric Walling → · Home Cinema Seating → · London Office → · Home Cinema Installer London →

Project Gallery

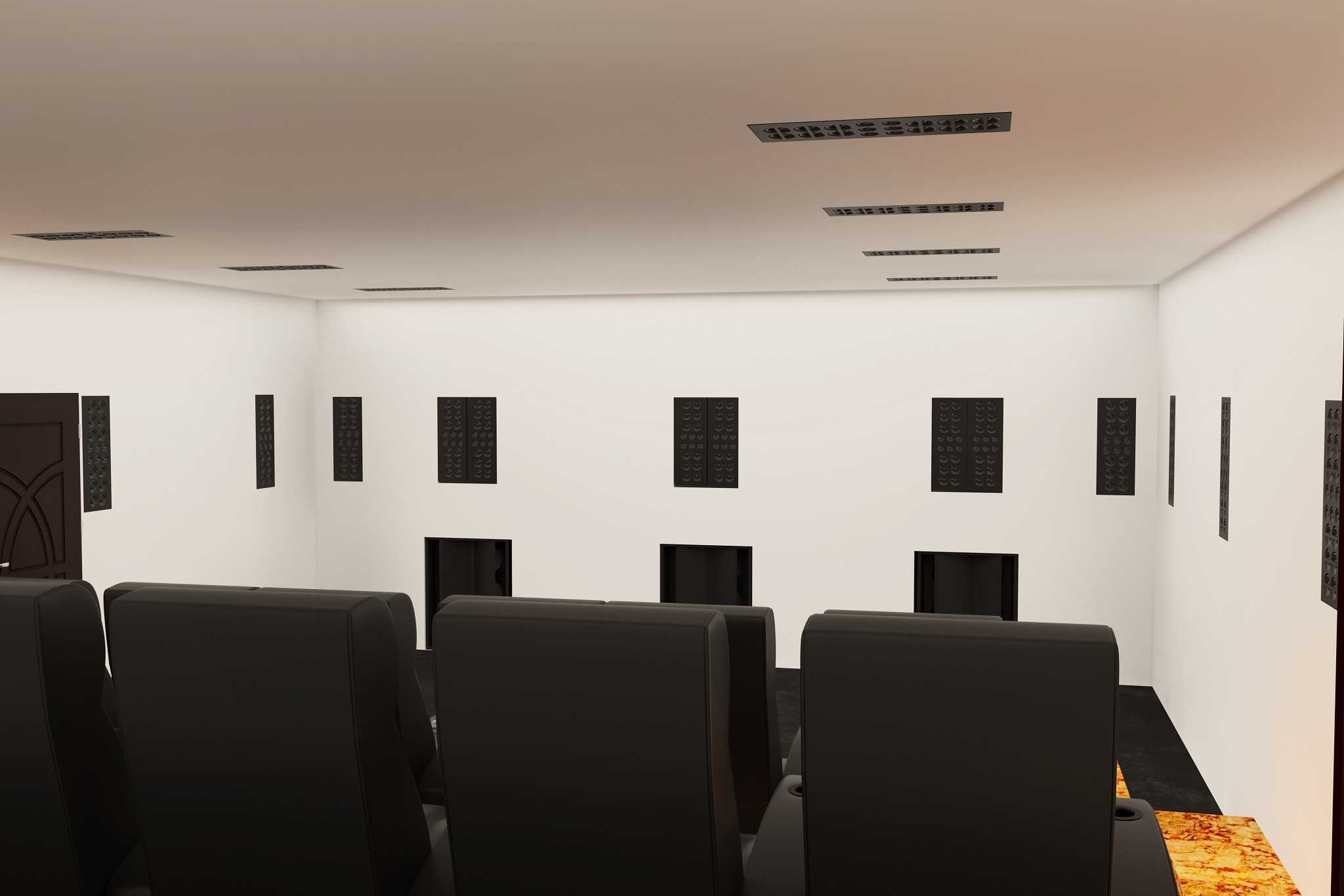

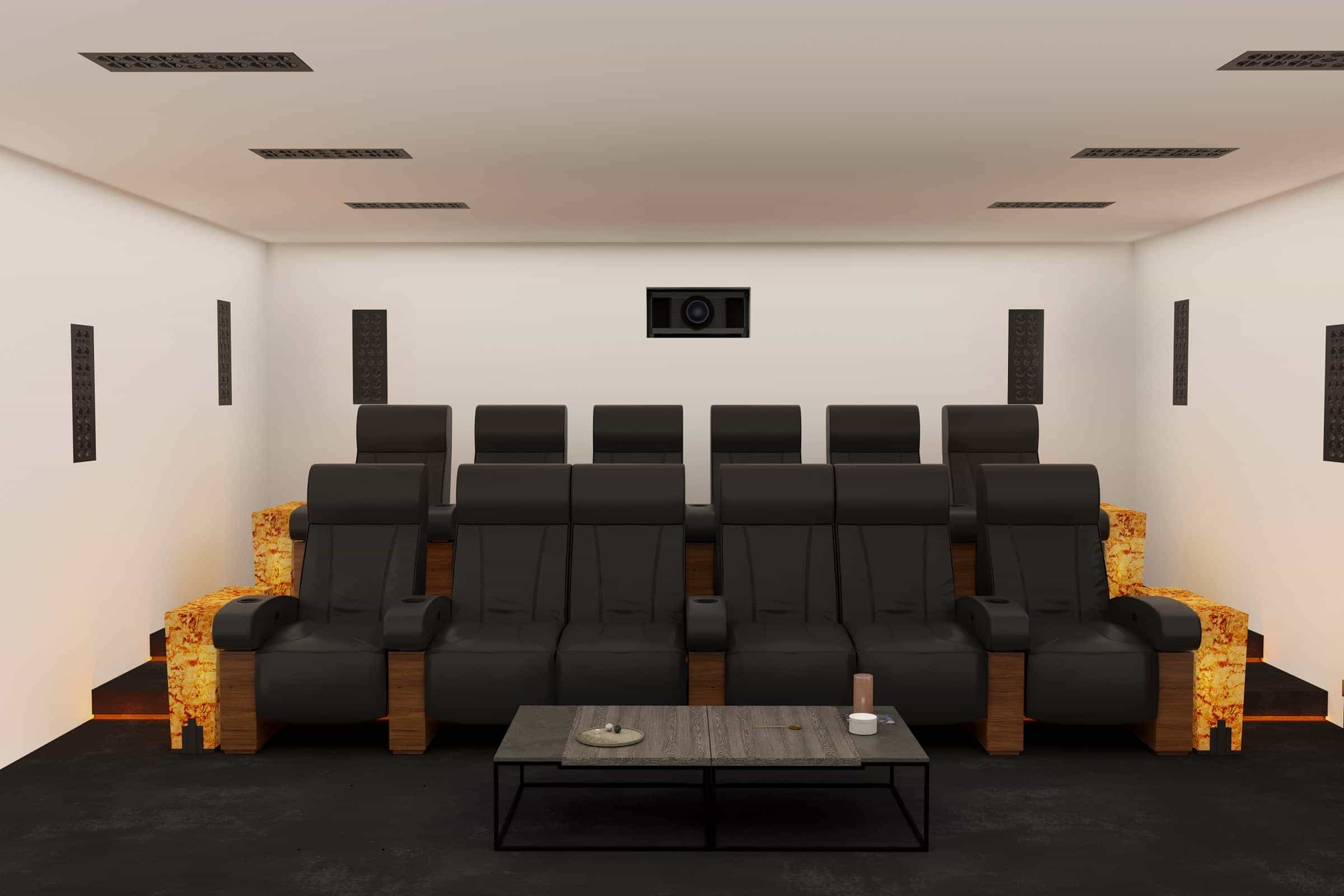

The images below are visualisations of the Ascot cinema from the design stage. The first two show the finished scheme: pillow-effect fabric walls, the 4.5m screen and two rows of Cineak Fortuny seating with backlit Onyx tables at the end of each row. The last two show the same room with the fabric removed, revealing the positions of the surround, height and front speakers that sit concealed behind the finished walls and ceiling.
